Fume Extractor, Series 100, 60 Hz, 23 in. W MPN:G120

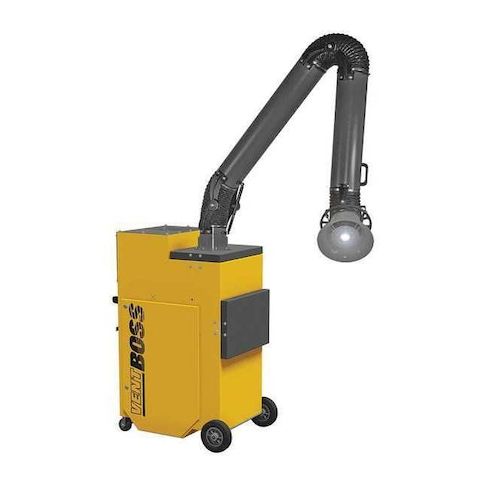

• VENTBOSS by Robovent G120 Series 100 fume extractor. Mobile unit (unit weight: 440 lb

• dimensions: 23 in W x 53 in H x 31 in). Powered by a 1.5 hp motor with maximum air flow of 1,200 cfm, running on single-phase 110V AC at 60 Hz and 20 A.

  Key Features:


  • Maximum air flow: 1,200 cfm (Air Flow (CFM): 1200)
  • Motor: 1.5 hp (Motor HP / Motor Horsepower (Maximum): 1 1/2 hp)
  • Power: 110V AC, single phase, 60 Hz, 20 A (Input Voltage, Phase, Frequency/Hz, Current/Input (Amps))
  • Sound level: 70 dB
  • Weight: 440 lb
  • Housing: Steel construction
  • color black and yellow
  • width 23 in, height 53 in, depth 31 in
  • Extraction arm: Included
  • diameter 8 in
  • maximum length 10 ft
  • Reusable cartridge filter with spark arrestor (media: nanofiber)
  • filter MERV rating: 15
  • filter area: 231 ft²
  • compatible filter P/N: PL-14D26-A15-SF
  • Acoustic silencing (sound level: 70 dB)
  • heavy duty construction (steel housing)
  • Built-in spark arrester (integrated)
  • LED light kit included
  • CSA Certified and UL Listed (as specified by the manufacturer)
  • Intended use: for maintenance and repair operations, manual welding, manufacturing and fabrication, and school and training facilities (per provided product/application listings)
