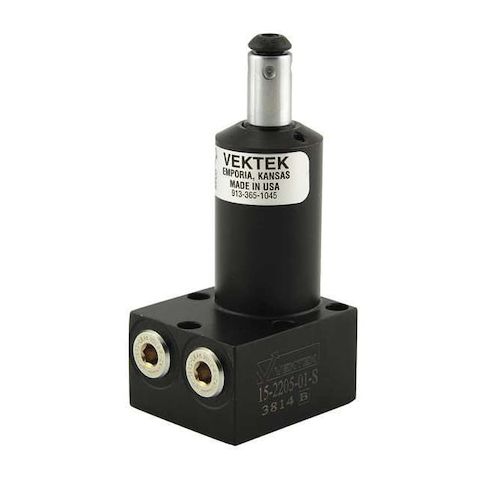

Hyd. Clamp, Swing, Bottom Flange, 450 lb. MPN:15-2205-03-S
Hyd. Clamp, Swing, Bottom Flange, 450 lb.
Swing Clamp Hydraulic Cylinders, Single Acting/Double Acting Double Acting, Turns Straight, Clamping Force 450 lbf, Total Stroke 0.57 in, Effective Area Clamped 0.098 sq in, Clamping Stroke 0.57 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 0.056 cu in, Oil Capacity Unclamped 0.142 cu in, Max. Oil Flow 1.5 gpm, Pressure Range 500 to 5000 psi, Extended Height 4.32 in, Outside Dia. 1.05 in, Mounting Hole Dia. 0.22 in, Number of Bolts 5
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 4.00
- Package Weight: 0.68
Product info last updated on April 10, 2026 7:03am UTC
Category: Hydraulic Cylinders and Equipment
