Drum Dumper, Stationary, 1500 lb., 55 gal. MPN:F80161A1

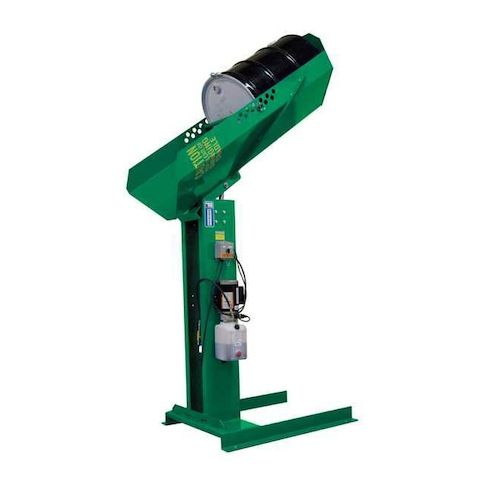

• The VALLEY CRAFT F80161A1 Low Level Drum Dumper is a stationary, fully assembled steel drum dumper for handling a single 55 gal drum with a 1,500 lb capacity. It accepts drums of fiber, plastic, or metal with diameters generally 14–24 in (maximum 25 in) and heights up to 48 in. The unit includes a 1.0 hp motor (115V AC, 60 Hz) and a 1 gpm pump, and features a powder-coated green housing and steel chute.

  Key Features:

  • Item type: Low Level Drum Dumper, stationary, fully assembled
  • Drum capacity: 55 gal
  • number of drums: 1
  • weight/load capacity: 1,500 lb
  • Material/finish: Steel construction and chute
  • powder-coated housing/finish
  • color: green
  • Drum size: accommodates diameters 14–24 in (max. 25 in)
  • maximum drum height 48 in
  • includes adjustable hold-down bar for drum heights up to 43 in
  • Lift/rotation: max. lift 68 in
  • rotated height 112.5 in
  • rotation height 114 in
  • dump/dispensing/level height 48 in
  • dump angle 45°
  • Performance: motor 1.0 hp (maximum motor horsepower 1 hp)
  • operating voltage 115V AC (110 V listed)
  • frequency 60 Hz
  • raise rate 25 in/sec
  • total raise time 25 sec (up only)
  • Included components: pump (1 gpm) and adjustable hold-down bar
  • Features: steel chute reach 9 in
  • horizontal clearance 68 in
  • quick-connect coupler
  • retracting process
  • Dimensions and footprint: overall height 66 in
  • overall length 52 in
  • overall depth 52 in
  • overall width 36 in
  • leg/clearance between legs 30 in
  • Standards: OSHA
  • type: duct mount
