Box Dumper, 36x36"Chute, 72"Dump ht, 6000lb MPN:F80173A3
Box Dumper, 36x36"Chute, 72"Dump ht, 6000lb

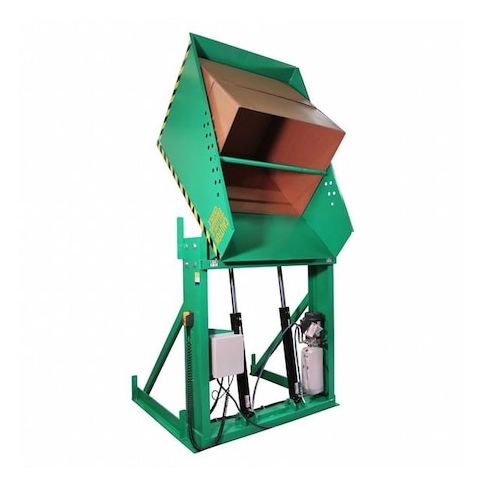

Elevate your material handling operations with the Valley Craft Hydraulic Box Dumper. This rugged and reliable machine can handle loads of up to 6,000 pounds, making it perfect for heavy-duty applications in industries such as construction, manufacturing, and warehousing. With a 72-inch dump height and 36-inch wide chute, the Box Dumper efficiently unloads materials into trucks, containers, or other storage vessels. Its hydraulic system and steel frame ensure smooth operation and durability, while the handheld pendant with magnetic back provides convenient control. Ideal for use in high-volume production environments, the Box Dumper streamlines material handling and boosts productivity.
Top product features:
- Hydraulic operation allows for easy and controlled dumping of loads
- The dump height is 72 inches, enabling users to easily load and unload materials at a comfortable height
- A handheld pendant with magnetic back provides a convenient and secure way to operate the box dumper
Top product applications:
- Warehouse Material Handling
- Construction Site Material Transfer
- Industrial Manufacturing Line Material Feeding
Hydraulic Box Dumper, Maximum Load Capacity 6,000 lb, Dump Height 72 in, Level Height 84 in, Lowered Height 12 in, Chute Length 36 in, Chute Width 36 in, Overall Length 62 in, Overall Width 51 in, Frame Material Steel, Operating Voltage 460V AC, Includes Handheld Pendant with Magnetic Back, Spring-Loaded Hold Down Bar, Maximum Chute Reach 5 in, Maximum Rotation Angle 45 Degrees , Minimum Hold Down Height 30 in, Maximum Hold Down Height 56 in, Hold Down Increments 2 in, Rotation Height 149 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 66.00
- Package Width: 51.00
- Package Height: 87.00
- Package Weight: 2000.00
Product info last updated on February 18, 2026 3:38am UTC
Category: Carts, Trucks, and Dollies
