Vacuum Fitting, Straight Adapter, 1" Tube x 1/4" NPT Female MPN:ZUSA-TF-VAC-12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2439983
Vacuum Fitting, Straight Adapter, 1" Tube x 1/4" NPT Female

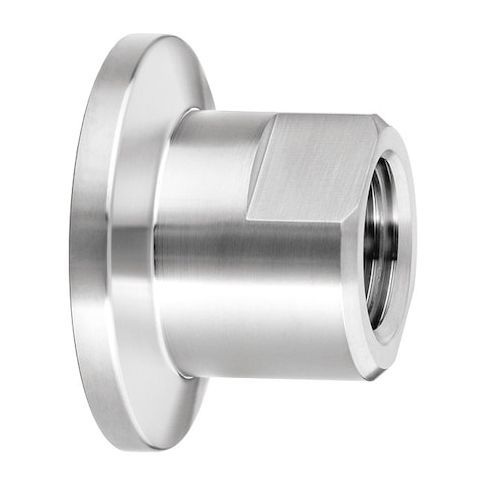

This stainless steel straight adapter is designed for vacuum applications, offering a reliable connection between 1in tubing and 1/4in NPT female ports. With a maximum operating temperature of 320°F, it can withstand high-temperature environments. The adapter's vacuum rating of 10-7 torr at 72°F ensures precise pressure control. Suitable for applications in research and development, laboratory settings, and industrial processes, this adapter provides a secure and leak-tight connection. Its compact design and durable construction make it an ideal solution for a variety of vacuum systems, including those requiring high-temperature and high-vacuum conditions.
Top product features:
- Stainless Steel construction for durability and resistance to corrosion
- Straight adapter design allows for easy connection between 1in tube and 1/4in NPT female fittings
- Vacuum rating of 10-7 torr at 72 Degrees F makes it suitable for high-vacuum applications
Top product applications:
- Vacuum Gauge Installation
- Vacuum Pump Connection
- Vacuum Chamber Fitting
Vacuum Fitting Adapter, Application Not Applicable, Fitting Side A Connection Type NW, Fitting Side B Connection Type FNPT, Fitting Material Stainless Steel, Material Grade 304, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 1 in, Maximum Operating Temperature 320 Degrees F, Trade No. 25, Specific Fitting Shape Straight Adapter, Flange Outside Diameter 1.563 in, Flange Thickness 1/8 in, Number of Bolt Holes 0, Vacuum Rating 10-7 torr @ 72 Degrees F, Standards GB4982-ISO-K
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.40
- Package Height: 1.50
- Package Weight: 0.85
Product info last updated on February 10, 2026 5:17am UTC
Category: Pipes, Valves and Fittings
