Vacuum Fitting, Straight Reducer, 2" Tube x 1" Tube MPN:ZUSA-TF-VAC-31
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2439554

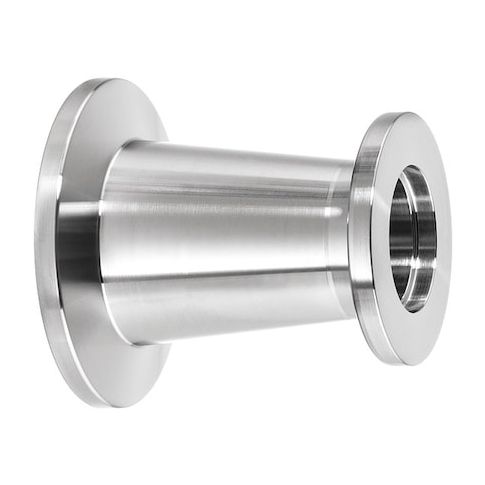

Vacuum Fitting, Straight Reducer, 2" Tube x 1" Tube
This stainless steel straight reducer is designed to connect 2in and 1in vacuum tubes in high-temperature applications up to 320°F. Made from grade 304 stainless steel, it provides excellent durability and resistance to corrosion. The fitting features a straight adapter shape with a flange outside diameter of 2.953in and a thickness of 1/8in. It is rated for vacuum use at 10-7 torr at 72°F and is suitable for various industrial applications, including laboratory equipment, medical devices, and semiconductor manufacturing. Its compact design and high-temperature rating make it an ideal solution for demanding vacuum environments.
Top product features:
- Stainless Steel construction for durability and resistance to corrosion
- Straight adapter design for smooth and efficient connection between two tubes
- Vacuum rating of 10-7 torr for reliable performance in low-pressure applications
Top product applications:
- Vacuum pump system
- Vacuum chamber assembly
- Laboratory equipment setup
Vacuum Fitting Adapter, Application Not Applicable, Fitting Side A Connection Type NW, Fitting Side B Connection Type NW, Fitting Material Stainless Steel, Material Grade 304, Fitting Side A Tube Outer Diameter 2 in, Fitting Side B Tube Outer Diameter 1 in, Maximum Operating Temperature 320 Degrees F, Trade No. 25, 50, Specific Fitting Shape Straight Adapter, Flange Outside Diameter 2.953 in, Flange Thickness 1/8 in, Number of Bolt Holes 0, Vacuum Rating 10-7 torr @ 72 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.60
- Package Height: 3.00
- Package Weight: 0.40
Product info last updated on February 12, 2026 9:06pm UTC
Category: Pipes, Valves and Fittings
