PTFE Spring Energized Rod Seal for 3/8" Rod or 1/2" Piston Bore MPN:ZUSASES-4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438793

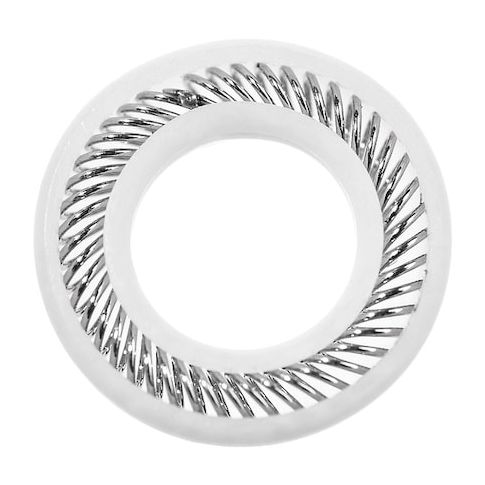

PTFE Spring Energized Rod Seal for 3/8" Rod or 1/2" Piston Bore
This PTFE Spring Energized Rod Seal is a reliable solution for high-performance applications, including oscillatory and reciprocating systems. Its unique design provides excellent sealing capabilities, withstanding pressures up to 3,000 psi and temperatures up to 450°F. The seal's PTFE material ensures low friction and resistance to chemicals, making it ideal for use in harsh environments. With its compact size and square cross-section, it can be easily integrated into a variety of systems, including those with 3/8in rod or 1/2in piston bores. This seal is perfect for applications requiring high precision and reliability, such as in aerospace, automotive, and industrial manufacturing.
Top product features:
- Seal material is PTFE, providing high-temperature resistance and chemical inertness.
- The seal has a spring-energized design, allowing it to maintain a tight seal in oscillatory and reciprocating systems.
- It can operate at a maximum pressure of 3,000 psi and a maximum temperature of 450 Degrees F.
Top product applications:
- Oscillatory Systems
- Reciprocating Systems
- Piston Bore
Spring Energized Seal, Seal Material PTFE, Inside Diameter 0.364 in, Outside Diameter 1/2 in, Overall Width 0.093 in, For Bore Diameter 0.5 in, For Groove Width 0.101 in, For Piston Groove Diameter 0.38 in, Application Oscillatory Systems, Reciprocating Systems, Color White, Cross Section Shape Square, For Rod Diameter 3/8 in, For Rod Groove Diameter 1/2 in, Hardness 55 Shore D, Heel Type Standard, Maximum Pressure 3,000 psi, Maximum Surface Speed 1,920 fpm, Maximum Temperature 450 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.50
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
