PTFE Spring Energized Rod Seal for 1/2" Rod or 11/16" Piston Bore MPN:ZUSASES-8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438626

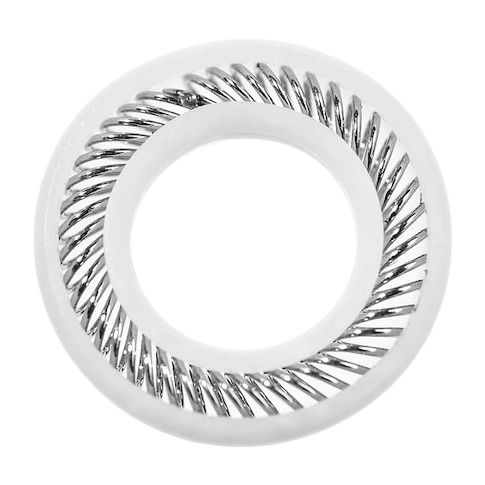

PTFE Spring Energized Rod Seal for 1/2" Rod or 11/16" Piston Bore
This PTFE Spring Energized Rod Seal is designed for use in oscillatory and reciprocating systems, providing reliable sealing and performance in a variety of applications. The seal's PTFE material ensures excellent chemical resistance, while its spring energized design provides a consistent seal force, even in harsh environments. With a maximum pressure rating of 3,000 psi and a temperature range of up to 450°F, this seal is suitable for use in high-performance systems, including those in the aerospace, automotive, and industrial sectors. Its compact design and ease of installation make it an ideal solution for a range of industries and applications.
Top product features:
- PTFE Spring Energized Rod Seal is suitable for oscillatory systems and reciprocating systems.
- Seal material is PTFE, which provides a low-friction and chemical-resistant interface.
- The seal is designed to operate at high temperatures up to 450 Degrees F.
Top product applications:
- Oscillatory Systems
- Reciprocating Systems
- Piston Bore Systems
Spring Energized Seal, Seal Material PTFE, Inside Diameter 0.487 in, Outside Diameter 11/16 in, Overall Width 0.125 in, For Bore Diameter 0.69 in, For Groove Width 0.149 in, For Piston Groove Diameter 0.5 in, Application Oscillatory Systems, Reciprocating Systems, Color White, Cross Section Shape Square, For Rod Diameter 1/2 in, For Rod Groove Diameter 11/16 in, Hardness 55 Shore D, Heel Type Standard, Maximum Pressure 3,000 psi, Maximum Surface Speed 1,920 fpm, Maximum Temperature 450 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.50
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
