Oil Burner Motor, 1/8 hp MPN:2097
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8681674

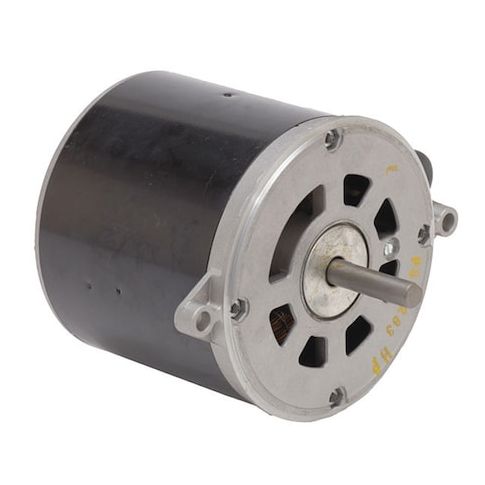

Oil Burner Motor, 1/8 hp
This 1/8 hp oil burner motor from US Motors is a reliable and efficient solution for various applications. Suitable for use in 115V AC environments, it offers continuous duty cycle operation with a maximum ambient temperature of 40 degrees C. The motor's split-phase design and totally enclosed non-ventilated enclosure ensure quiet and durable performance. Ideal for oil burner systems, HVAC, and industrial applications, this motor provides a cost-effective alternative to other power sources. Its compact design and CW/CCW rotation make it easy to integrate into existing systems, providing a reliable and efficient solution for a wide range of uses.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure provides protection from dust and moisture.
- Shaft Length 2 in allows for flexibility in mounting and installation.
- Single Phase motor design enables efficient operation on standard household electrical systems.
Top product applications:
- Oil burner motor for residential heating systems
- Oil burner motor for commercial heating systems
- Oil burner motor for industrial boiler applications
Oil Burner Motor, Single Phase, Motor Design Split-Phase, 1/8 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115V AC, 2.4 A Full Load Amps, 48N Frame, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Face, Shaft Length 2 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 8.12
- Package Weight: 8.30
Product info last updated on February 15, 2026 3:03pm UTC
Category: Motors
