GeneralPurposeMotor, 1hp, 1725RPM, 56HC MPN:D1CP2PHC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8341707

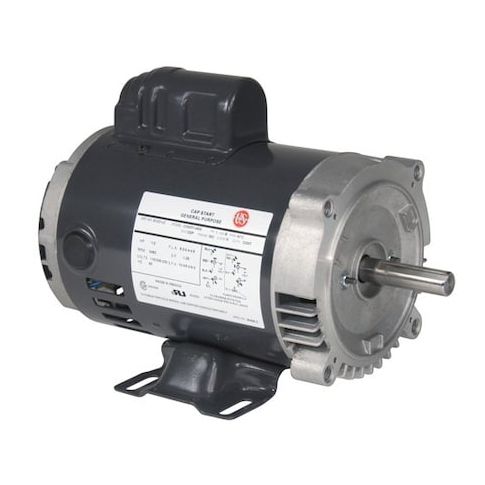

GeneralPurposeMotor, 1hp, 1725RPM, 56HC
This 1hp, 1725RPM General Purpose Motor from US Motors is designed for a wide range of applications, including industrial equipment, pumps, and conveyor systems. Its single-phase, capacitor-start design provides efficient and reliable operation. The motor is rated for continuous duty and features a 56HC frame for compact installation. Suitable for use in 115/230V AC environments, this motor offers a high service factor of 1.15 and operates within a 40°C ambient temperature range. Ideal for applications requiring low to moderate horsepower, this motor provides a reliable and cost-effective solution for various industrial applications.
Top product features:
- Single Phase Design
- Motor Design Capacitor-Start
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 31.43
Product info last updated on February 11, 2026 3:56am UTC
Category: Motors
