GeneralPurposeMotor, 1/4hp, 1140RPM, 56 MPN:D14CPA3P9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8334052

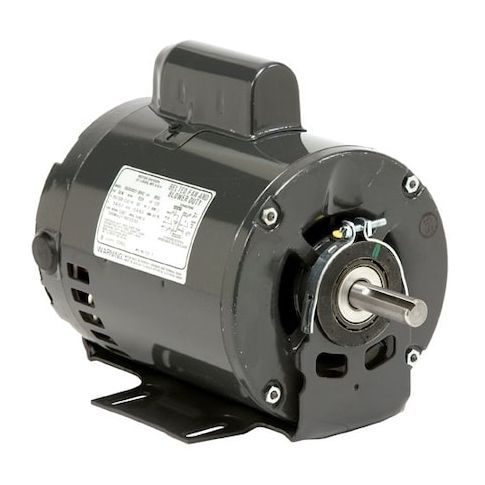

GeneralPurposeMotor, 1/4hp, 1140RPM, 56
The General Purpose Motor from US Motors is a versatile and reliable workhorse for various industrial applications. With its 1/4 hp rating and 1,140 RPM, this motor is ideal for use in applications such as conveyor systems, pumps, and fans. Its capacitor-start/run design provides efficient operation and long lifespan, while its open drip-proof enclosure protects against dust and moisture. Suitable for continuous duty cycles, this motor is perfect for use in manufacturing, warehousing, and other industrial settings where reliability and efficiency are paramount. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Capacitor-start/run motor design for efficient operation
- Single-phase motor for use in a variety of applications
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pump and fan applications due to its low horsepower and high RPM
- General lighting and HVAC applications due to its single-phase design and compact size
- Low-power machinery and equipment such as conveyors and small machinery due to its low horsepower and high efficiency
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.7/1.9 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 8.40
- Package Height: 11.00
- Package Weight: 22.90
Product info last updated on March 4, 2026 4:39am UTC
Category: Motors
