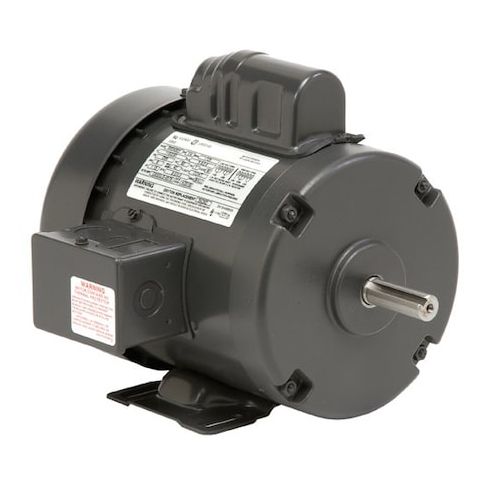

Capacitor-Start/Run Belt Drive Motor, 1 1/2 HP, 56H Frame, 115/208-230V AC Voltage, No. of Speeds: 1 MPN:T32C2JH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8045248
Capacitor-Start/Run Belt Drive Motor, 1 1/2 HP, 56H Frame, 115/208-230V AC Voltage, No. of Speeds: 1
This 1.5 HP capacitor-start/run belt drive motor is ideal for use in residential and commercial applications, including fans and blowers. With a single speed of 1,725 RPM, it provides reliable and efficient operation in a variety of settings. The motor's totally enclosed fan-cooled design ensures durability and longevity, while its 56H frame and 115/208-230V AC voltage make it easy to integrate into existing systems. The motor's compact size and lightweight design also make it easy to install and maintain, making it a great choice for a wide range of applications, including HVAC and industrial ventilation systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor protection and durability
- Single Phase motor design for efficient and reliable operation
- 1.725 RPM nameplate speed for precise control over airflow and application
Top product applications:
- Air Compressor
- HVAC System
- Industrial Fan
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 14.4/8.0-7.2 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
