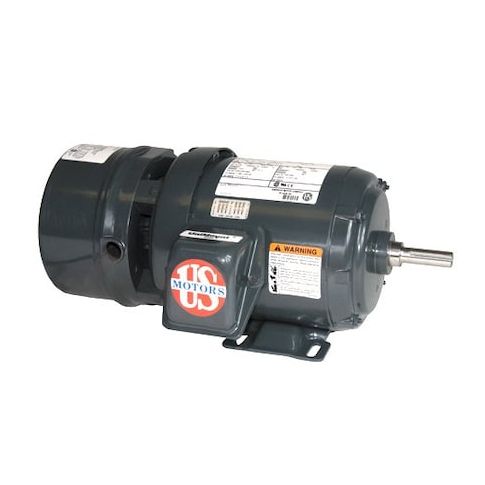

BrakeMotor, 1hp, 1800RPM, 208-230/460VAC MPN:BMU1P2D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8044356
BrakeMotor, 1hp, 1800RPM, 208-230/460VAC
The BrakeMotor from US Motors is a reliable and efficient solution for various applications. With a 1hp rating and 1800RPM, it provides consistent performance in demanding environments. Suitable for use at 208V, this three-phase motor is ideal for industrial settings where continuous operation is required. Its rugged design and totally enclosed fan-cooled enclosure ensure optimal cooling and protection from dust and debris. The motor's high service factor of 1.25 allows for increased usage without compromising performance. Suitable for applications such as conveyor systems, pumps, and material handling equipment, the BrakeMotor delivers reliable and efficient operation in a variety of industries.
Top product features:
- Totally Enclosed Fan Cooled design for improved reliability and reduced maintenance
- 1.75 hp equivalent power output at 208V for increased productivity
- Rigid Base mounting type for secure and stable installation
Top product applications:
- Air Compressor
- Conveyor System
- Material Handling Equipment
Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.1-3.0/1.5 A Full Load Amps, 143T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 35.00
Product info last updated on February 9, 2026 10:48am UTC
Category: Motors
