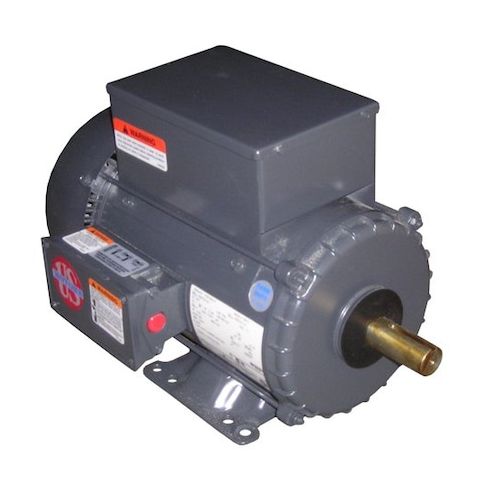

General Purpose Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/230V AC, 1, 725 Nameplate RPM, 56 Frame
This 3/4 HP, 115/230V AC capacitor-start motor is designed for general purpose farm duty applications. It offers a high nameplate RPM of 1,725 and a motor service factor of 1.15, making it ideal for continuous duty cycles. The motor is suitable for use in a variety of applications, including irrigation systems, water pumps, and agricultural machinery. Its totally enclosed fan-cooled design and rigid base mounting type provide reliable and efficient operation in harsh environments. With a lead time of just one day, this motor can be easily integrated into your farm equipment needs.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Motor Service Factor of 1.15 for increased overload capacity and longer motor life
- Single Phase, Capacitor-Start motor design for efficient and reliable operation
Top product applications:
- Pumps and water circulation systems
- Well drilling and irrigation equipment
- Agricultural equipment and machinery
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.4/5.7 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.30
- Package Width: 12.30
- Package Height: 12.00
- Package Weight: 28.40
