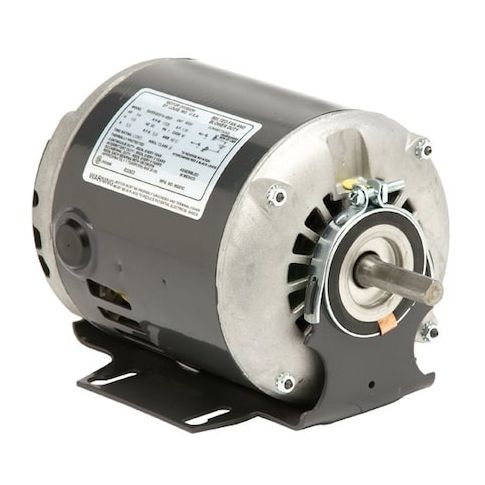

Split-Phase Belt Drive Motor, 1/4 HP, 56 Frame, 115V AC Voltage, 1, 140 Nameplate RPM MPN:D14B3N9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8042712
Split-Phase Belt Drive Motor, 1/4 HP, 56 Frame, 115V AC Voltage, 1, 140 Nameplate RPM
This 1/4 HP Split-Phase Belt Drive Motor is designed for reliable operation in a variety of applications, including fans and blowers. With a nameplate RPM of 1,140 and a continuous duty cycle, it's perfect for use in residential and commercial settings. The motor's open drip-proof enclosure and cradle base mounting type make it easy to install and maintain. Its compact size and lightweight design make it ideal for use in tight spaces. With a motor service factor of 1.35 and a maximum ambient temperature of 40 degrees C, this motor is built to withstand the demands of continuous operation.
Top product features:
- Split-Phase Belt Drive Motor design provides a reliable and efficient power transmission system.
- The motor has a single phase design, allowing for a simple and cost-effective installation.
- The Open Drip Proof motor enclosure design protects the internal components from dust and moisture, ensuring reliable operation in harsh environments.
Top product applications:
- Furnace fan motor
- HVAC blower motor
- Centrifugal blower motor
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, 5.4 A Full Load Amps, 56Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 22.00
Product info last updated on February 10, 2026 12:04pm UTC
Category: Motors
