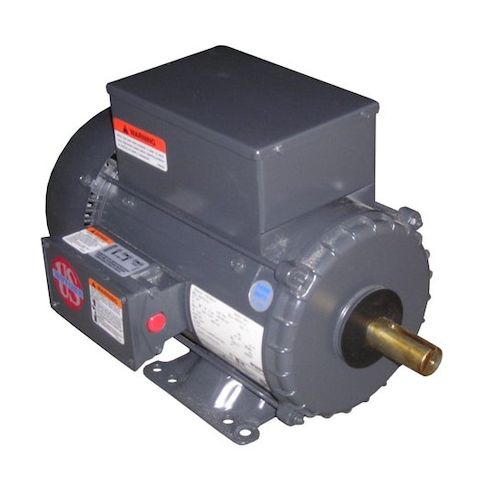

General Purpose Farm Duty Motor, Capacitor-Start, 1 HP, 115/230V AC, 1, 725 Nameplate RPM, 143T Frame MPN:FD1CM2P14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8041364
General Purpose Farm Duty Motor, Capacitor-Start, 1 HP, 115/230V AC, 1, 725 Nameplate RPM, 143T Frame
This US Motors General Purpose Farm Duty Motor is a reliable and efficient solution for various agricultural and industrial applications. With a single-phase capacitor-start design and 1 HP rating, it provides a consistent performance in demanding environments. The motor's 1,725 RPM nameplate speed and 143T frame ensure smooth operation and long lifespan. Suitable for use in 115/230V AC systems, it's ideal for powering pumps, fans, and other equipment in farms, ranches, and small-scale industrial settings. Its totally enclosed fan-cooled design and rigid base mounting type make it a durable and low-maintenance option for continuous duty cycles.
Top product features:
- Totally Enclosed Fan Cooled design for improved protection against dust and moisture
- Motor Shaft Rotation in both CW and CCW directions for increased flexibility
- Manual Thermal Protection for user-controlled monitoring and maintenance
Top product applications:
- Pump and irrigation systems
- General-purpose machinery such as grain dryers and conveyors
- Powering farm equipment like tractors and plows
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 15.0/7.5 A, 143T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MK
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.10
- Package Height: 11.90
- Package Weight: 35.50
