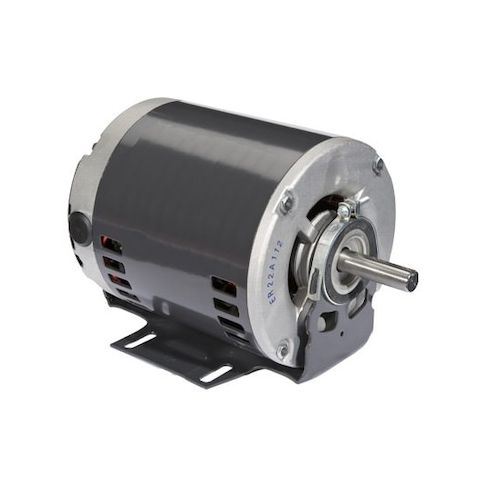

3-Phase Belt Drive Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 3, 450 Nameplate RPM MPN:D32PA1AH9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G800980547
3-Phase Belt Drive Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 3, 450 Nameplate RPM
This 3-Phase Belt Drive Motor is a reliable and efficient solution for various industrial applications, including fans and blowers. With a 1 1/2 HP rating and 3,450 RPM, it provides consistent performance and power. Suitable for use at 208-230/460V AC voltage, this motor is ideal for environments with high ambient temperatures up to 40°C. Its open drip-proof design and cradle base mounting make it easy to integrate into existing systems. Perfect for continuous duty cycles, this motor is a great choice for applications such as HVAC, material handling, and manufacturing. Its compact size and durable construction ensure long-lasting performance.
Top product features:
- Three-phase belt drive motor design for efficient operation
- Operates at 3,450 RPM for high-speed applications
- Open drip-proof motor enclosure for protection in harsh environments
Top product applications:
- Industrial conveyor systems
- Pump applications in water treatment plants
- Air handling units in commercial HVAC systems
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.7-4.4/ 2.2 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 10.90
- Package Height: 10.90
- Package Weight: 29.15
Product info last updated on January 17, 2026 4:56am UTC
Category: Motors
