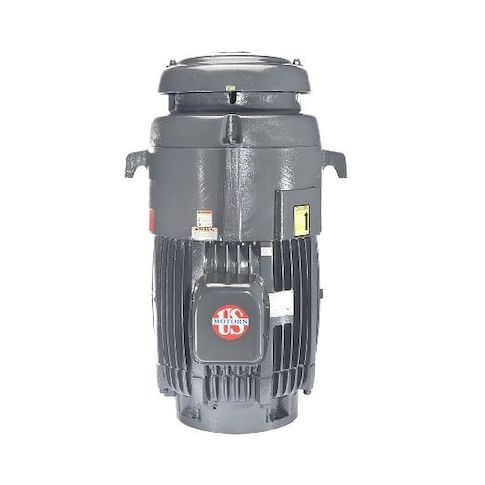

3-Phase Pump Motor, 20 HP, 256TP Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:HT20P2BLE
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7733108
3-Phase Pump Motor, 20 HP, 256TP Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 20 HP 3-Phase Pump Motor from US Motors is designed for continuous duty cycles in a variety of applications, including water treatment, chemical processing, and HVAC systems. Its premium efficient design and totally enclosed fan-cooled enclosure ensure reliable operation and minimize maintenance. With a 256TP frame and 60 Hz operation, this motor is suitable for use in a range of industries that require high-torque, high-speed performance. Its compact size and inverter-rated design make it an ideal choice for applications where space and flexibility are essential.
Top product features:
- Totally Enclosed Fan-Cooled design provides a safe and reliable operating environment.
- Inverter Rated for 20:1 (VT) and 4:1 (CT) operation, allowing for efficient and flexible motor control.
- Premium Efficient motor design reduces energy consumption and operating costs.
Top product applications:
- Pump
- Motor Application
- Inverter Rated Motor
Pump Motor, Body Dia. 14.4 in, Bolt Circle Dia. 9 1/8 in, Duty Cycle Continuous, Frame 256TP, Hz 60 Hz, Full Load Amps 47.0/23.7, HP 20, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 20:1 (VT), 4:1 (CT), Length Less Shaft 27 3/8 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 55.0/27.5, Motor Application Pump, Motor Design Three-Phase, Motor Efficiency Group Premium Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 21.50
- Package Height: 37.00
- Package Weight: 300.00
Product info last updated on February 26, 2026 12:22pm UTC
Category: Motors
