3-Phase Pump Motor, 50 HP, 326TP Frame, 230/460V AC Voltage, 1, 780 Nameplate RPM MPN:HT50P2BLG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7733001
3-Phase Pump Motor, 50 HP, 326TP Frame, 230/460V AC Voltage, 1, 780 Nameplate RPM

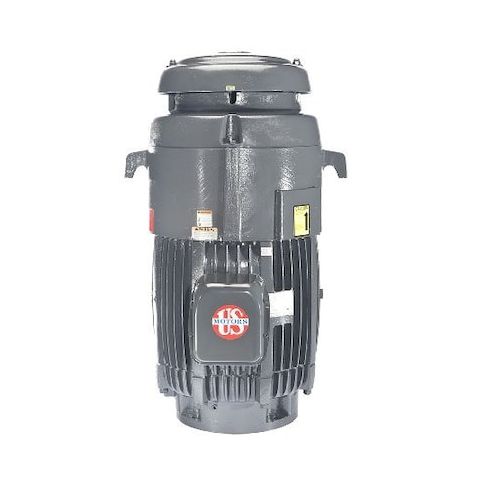

This 50 HP 3-phase pump motor from US Motors is designed for continuous duty in a variety of applications. With a 326TP frame and 230/460V AC voltage, it operates efficiently at 1,780 nameplate RPM. The motor is built for reliability with a totally enclosed fan-cooled design and a premium efficient motor efficiency group. It's suitable for use in water treatment, chemical processing, and oil and gas industries. Its inverter-rated design allows for flexible installation options and its compact size makes it ideal for space-constrained areas. It's also available for drop shipment with a 40-day lead time.
Top product features:
- Totally Enclosed Fan-Cooled design for improved reliability and reduced maintenance
- Three-phase motor design for efficient power handling and reduced energy consumption
- Premium Efficient motor design for increased energy savings and reduced operating costs
Top product applications:
- Pump
- Motor Design 3-Phase
- Motor Application Pump
Pump Motor, Body Dia. 17 in, Bolt Circle Dia. 14 3/4 in, Duty Cycle Continuous, Frame 326TP, Hz 60 Hz, Full Load Amps 116.0/58.0, HP 50, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 20:1 (VT), 4:1 (CT), Length Less Shaft 36 7/8 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 133.0/67.0, Motor Application Pump, Motor Design Three-Phase, Motor Efficiency Group Premium Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.00
- Package Width: 30.00
- Package Height: 35.63
- Package Weight: 690.00
Product info last updated on March 3, 2026 7:13am UTC
Category: Motors
