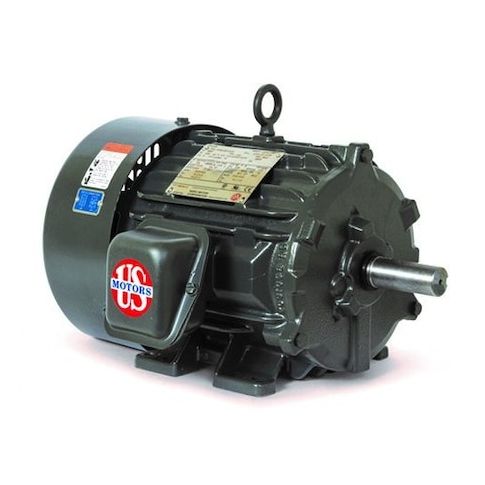

3-Phase Motor, 20 HP, 256T Frame, 230V AC, 460V AC Voltage, 1, 775 Nameplate RPM MPN:HD20V2B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7732852
3-Phase Motor, 20 HP, 256T Frame, 230V AC, 460V AC Voltage, 1, 775 Nameplate RPM
This 20 HP, 3-phase motor from US Motors is designed for heavy-duty applications, featuring a 256T frame and totally enclosed fan-cooled design for optimal performance and reliability. With a nameplate RPM of 1,775 and a service factor of 1.15, this motor can handle continuous duty cycles in temperatures up to 104°F. Suitable for use in industrial settings, such as manufacturing and processing facilities, this motor is also inverter-rated for use with variable frequency drives. Its compact design and horizontal footprint make it ideal for installation in tight spaces, providing a reliable and efficient solution for demanding applications.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Totally enclosed fan-cooled design provides protection from environmental factors and reduces maintenance needs.
- Continuous duty cycle enables the motor to operate for extended periods without overheating.
Top product applications:
- Industrial Laundry Equipment
- Heavy Duty Pumps
- Cement Mixers
Vector Motor, Three Phase, Motor Design Three-Phase, 20 HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 47.0/23.7 A, 256T Frame, 60 Hz Hz, Motor Service Factor 1.15, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Horizontal Footed, Motor Mounting Position Horizontal, Inverter Rated Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 280.00
Product info last updated on March 18, 2026 5:45am UTC
Category: Motors
