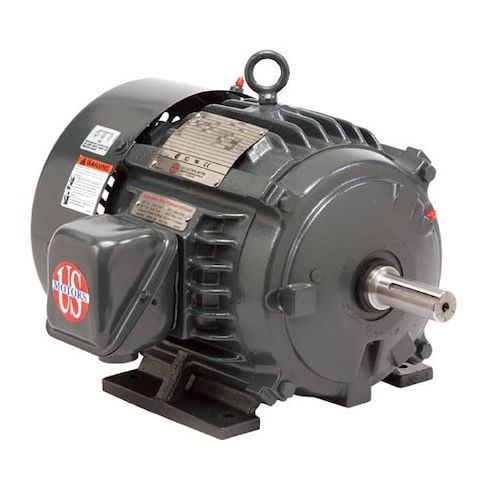

3-Phase Vector Motor, 7 1/2 HP, 213 Frame, 230/460V AC Voltage, 1, 775 Nameplate RPM MPN:HN7T2BC

Vector Motor, Three Phase, Motor Design Three-Phase, 7 1/2 HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 20.6/10.3 A, 213 Frame, Torque 529 ft-lb, Max. Speed 1,775 RPM, Speed Range 20:01, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
