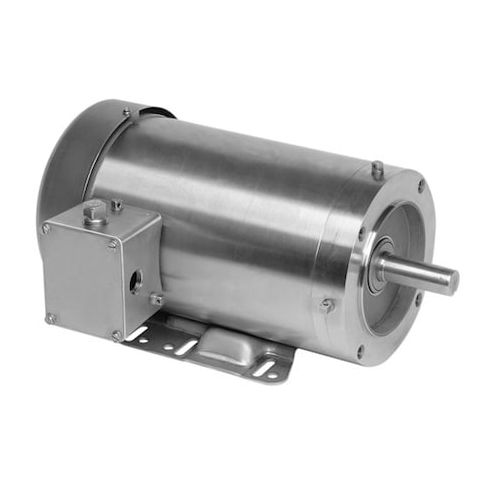

Three-Phase Washdown Motor, 1 hp HP, 56 Frame, 208-230/460V AC Voltage, 3, 515 RPM Nameplate RPM MPN:WDS1S1ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7732329
Three-Phase Washdown Motor, 1 hp HP, 56 Frame, 208-230/460V AC Voltage, 3, 515 RPM Nameplate RPM
This three-phase washdown motor is designed for heavy-duty use in harsh environments, featuring a totally enclosed fan-cooled enclosure and a rigid base for secure mounting. With a nameplate RPM of 3,515, it provides high-speed operation for applications such as food processing, pharmaceutical manufacturing, and chemical handling. Its continuous duty cycle and NEMA Design B rating ensure reliable performance in demanding conditions. The motor's compact size and lightweight design make it easy to integrate into existing systems, while its 1.15 service factor and Class F insulation provide added protection against overheating and electrical stress. Suitable for use at 208-230/460V AC.
Top product features:
- Three-phase design for efficient operation in harsh environments
- Totally enclosed fan-cooled enclosure for protection against dust and water
- Continuous duty cycle for uninterrupted operation in demanding applications
Top product applications:
- Food Processing Equipment
- Brewery or Winery Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,515 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.8-2.6/1.3 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 19.50
- Package Weight: 42.00
Product info last updated on April 10, 2026 8:54pm UTC
Category: Motors
