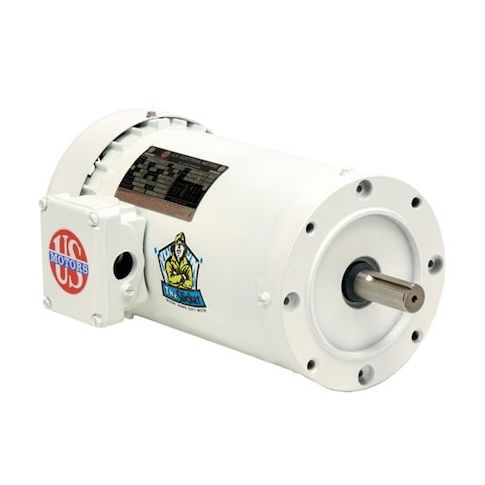

Three-Phase Washdown Motor, 2 hp HP, 56 Frame, 208-230/460V AC Voltage, 3, 450 RPM Nameplate RPM MPN:WD2S1ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7732012
Three-Phase Washdown Motor, 2 hp HP, 56 Frame, 208-230/460V AC Voltage, 3, 450 RPM Nameplate RPM
This Three-Phase Washdown Motor is designed for demanding applications that require high reliability and efficiency. Suitable for use in harsh environments, it features a totally enclosed fan-cooled design and a service factor of 1.15 for continuous operation. With a nameplate RPM of 3,450, this motor is ideal for applications such as food processing, pharmaceutical manufacturing, and chemical processing. Its compact 56 frame size and NEMA Design B rating ensure a long lifespan and easy integration into existing systems. Available for immediate shipment, this motor meets the needs of industries that require a reliable and efficient power solution.
Top product features:
- Three-Phase design for efficient power distribution
- Totally Enclosed Fan Cooled enclosure for reliable operation in harsh environments
- Continuous duty cycle for uninterrupted performance
Top product applications:
- Food Processing
- Pulp and Paper Mill
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 6.0-5.4/2.7 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 85 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 32.00
Product info last updated on February 22, 2026 5:16pm UTC
Category: Motors
