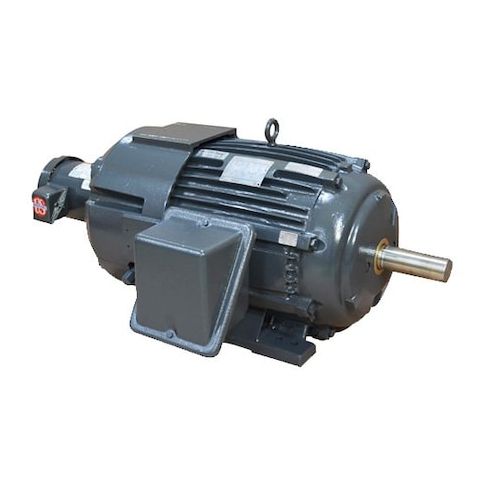

3-Phase Vector Motor, 10 HP, 215 Frame, 230/460V AC Voltage, 1, 775 Nameplate RPM MPN:B10T2BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7731373
3-Phase Vector Motor, 10 HP, 215 Frame, 230/460V AC Voltage, 1, 775 Nameplate RPM
This 10 HP 3-Phase Vector Motor is designed for high-performance applications in various industries. Its advanced vector motor design provides efficient and reliable operation, with a wide speed range of 5,000:1 and a maximum speed of 1,775 RPM. Suitable for continuous duty cycles, this motor offers a high torque output of 466 ft-lb and operates within a temperature range of -40°C to 104°F. Its totally enclosed non-ventilated design ensures safe and reliable operation in harsh environments. Ideal for use in manufacturing, material handling, and other industrial settings, this motor provides a cost-effective and efficient solution for demanding applications.
Top product features:
- Three-phase operation allows for efficient use of electrical power
- Totally Enclosed Non-Ventilated (TEFC) design protects against dust and moisture
- Speed Range of 5,000:1 enables precise control over motor speed
Top product applications:
- Pumps and Compressors
- Industrial Automation Systems
- Water Treatment Plants
Vector Motor, Three Phase, Motor Design Three-Phase, 10 HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 27.7/13.9 A, 215 Frame, Torque 466 ft-lb, Max. Speed 1,775 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.50
- Package Width: 21.00
- Package Height: 12.17
- Package Weight: 310.00
Product info last updated on March 22, 2026 11:25am UTC
Category: Motors
