Permanent Split Capacitor Motor, PSC, 1/2/1/5HP, 1075rpm, 48Y, 60Hz, 208, 1/2 HP, 48 Frame MPN:3325H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7731093

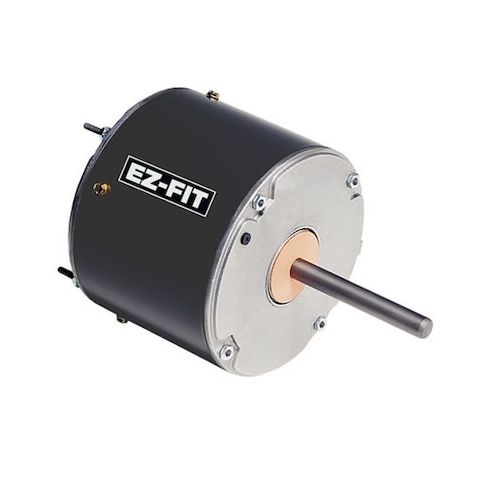

Permanent Split Capacitor Motor, PSC, 1/2/1/5HP, 1075rpm, 48Y, 60Hz, 208, 1/2 HP, 48 Frame
The US Motors Permanent Split Capacitor Motor is a reliable and efficient solution for various applications. This 1/2 HP motor operates at 1,075 RPM and is designed for use in condenser fan applications. Its permanent split capacitor design provides consistent speed and torque, making it ideal for continuous operation. The motor's totally enclosed air-over design protects against dust and moisture, ensuring reliable performance in harsh environments. With its compact size and versatility, this motor is suitable for use in residential and commercial HVAC systems, making it a valuable addition to any installation.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design for protection from environmental factors
- Permanent Split Capacitor Motor Design for efficient and reliable operation
- Auto Thermal Protection for motor safety and extended lifespan
Top product applications:
- Air Conditioning Condenser Fan Motor
- HVAC System Fan Motor
- Commercial Refrigeration Unit Fan Motor
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.6-1.7 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Stud, Motor Frame Material Steel, Shaft Length 4 1/2 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 16.60
