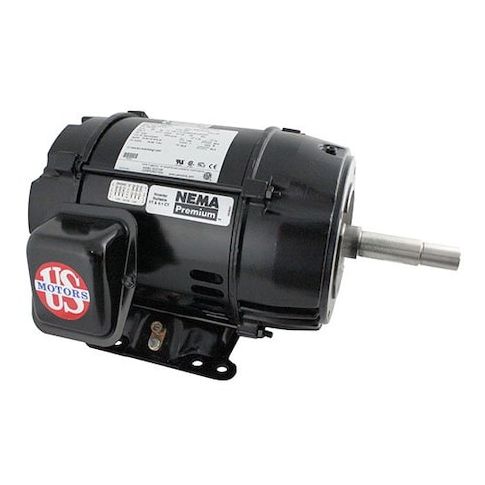

3-Phase Pump Motor, 10 HP, 213JMZ Frame, 208-230/460V AC Voltage, 3, 525 Nameplate RPM MPN:EEQK1000
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7731078
3-Phase Pump Motor, 10 HP, 213JMZ Frame, 208-230/460V AC Voltage, 3, 525 Nameplate RPM
This 10 HP, 3-phase pump motor is designed for demanding industrial applications, offering NEMA Premium efficiency and a 20:1 inverter rating for reliable operation. With a 213JMZ frame and 60 Hz operation, it can handle continuous duty cycles in temperatures up to 40 degrees C. The motor's compact design, measuring 10 inches in diameter and 13.5 inches in length, makes it ideal for space-constrained installations. Suitable for use in water treatment, wastewater management, and other industrial processes, this motor provides a reliable and efficient solution for pumping applications.
Top product features:
- 3-Phase operation for efficient power distribution
- NEMA Premium Efficient motor design for reduced energy consumption
- Inverter Rated for smooth and reliable operation in variable frequency applications
Top product applications:
- Water Treatment Plant
- Oil and Gas Industry
- Pulp and Paper Mill
Pump Motor, Body Dia. 10 in, Bolt Circle Dia. 7 1/4 in, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 213JMZ, Hz 60 Hz, Full Load Amps 27.0-26.2/13.1, Height 6 3/4 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 20:1 (VT), 4:1 (CT), Length Less Shaft 13 1/2 in, Manufacturers Warranty Length 24 mo, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 31.0-29.4.0/14.7, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.00
- Package Height: 15.00
- Package Weight: 90.00
Product info last updated on January 18, 2026 8:29am UTC
Category: Motors
