Three-Phase Washdown Motor, 1 hp HP, 56 Frame, 230/460V AC Voltage, 1, 800 RPM Nameplate RPM MPN:WDP1P2DFCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7730944
Three-Phase Washdown Motor, 1 hp HP, 56 Frame, 230/460V AC Voltage, 1, 800 RPM Nameplate RPM

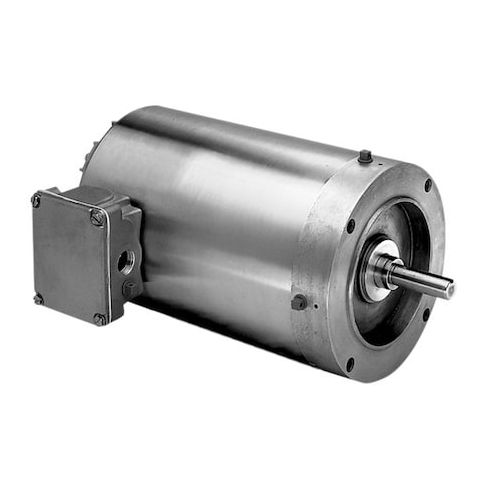

This three-phase washdown motor is designed for use in harsh environments and demanding applications. With a 1 hp rating and 1,800 RPM nameplate speed, it provides reliable power for high-speed operations. Constructed with a totally enclosed non-ventilated design, it protects against dust and water ingress, making it ideal for use in food processing, pharmaceutical, and chemical manufacturing facilities. Its continuous duty cycle and NEMA Design B rating ensure efficient operation and long motor life. With a country of origin in Mexico, this motor offers a cost-effective solution for heavy-duty washdown applications.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed non-ventilated enclosure for protection from washdown environments
- Continuous duty cycle operation for reliable performance in demanding applications
Top product applications:
- Food Processing
- Chemical Processing
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.5-3.4/1.7 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 30.50
