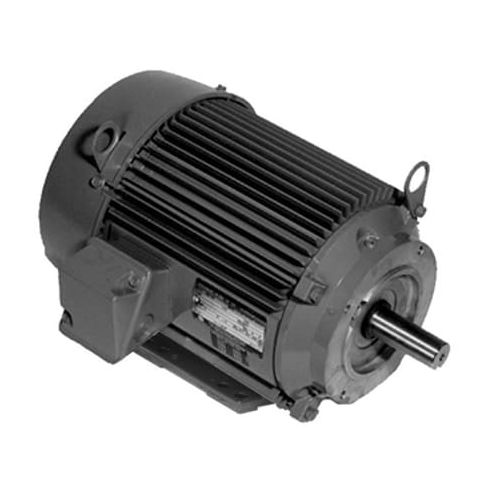

Three-Phase Motor, 3 HP, 182TC Frame, 575V Voltage, 1, 770 Nameplate RPM 16 3/16 in Overall Length MPN:U3P2GC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7730700
Three-Phase Motor, 3 HP, 182TC Frame, 575V Voltage, 1, 770 Nameplate RPM 16 3/16 in Overall Length
This high-performance 3 HP three-phase motor is designed for demanding industrial applications, including manufacturing, material handling, and HVAC systems. With a totally enclosed fan-cooled design, it provides reliable operation in harsh environments. Its 1,770 nameplate RPM and 3.2A full-load amps make it suitable for a wide range of applications, including conveyor systems, pumps, and fans. The motor's high efficiency of 89.5% and CSA certification ensure safe and energy-efficient operation. Its compact 182TC frame and rigid base mounting make it easy to install and integrate into existing systems. Ideal for applications requiring high power and reliability.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and reliable operating environment for the motor.
- Rigid Base Motor Mounting Type ensures a secure and stable installation of the motor.
- CW/CCW Motor Shaft Rotation allows for flexible and customizable motor integration into various applications.
Top product applications:
- High-speed manufacturing equipment
- Pumps and compressors
- Material handling systems
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,770, Frame 182TC, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 3.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, 1,701-1,800, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 60.00
Product info last updated on February 11, 2026 9:28am UTC
Category: Motors
