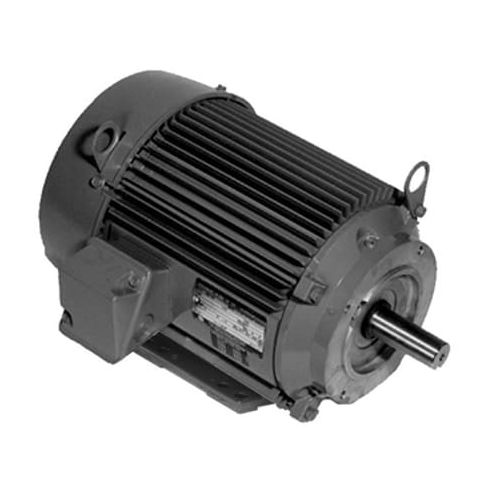

Three-Phase Motor, 3 HP, 182TC Frame, 575V Voltage, 1, 770 Nameplate RPM 16 3/16 in Overall Length MPN:U3P2GCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7730509
Three-Phase Motor, 3 HP, 182TC Frame, 575V Voltage, 1, 770 Nameplate RPM 16 3/16 in Overall Length
This 3 HP three-phase motor from US Motors is a reliable and efficient solution for a variety of industrial applications. Suitable for use in harsh environments, the totally enclosed fan cooled design provides protection from dust and moisture. With a nameplate RPM of 1,770 and a high efficiency rating of 89.5 percent, this motor is ideal for applications requiring high torque and low energy consumption. It can be used in manufacturing, material handling, and other industries where reliable and efficient motor performance is critical. Its compact design and CSA certification make it a great choice for a range of applications.
Top product features:
- Three-Phase Motor, 182TC Frame, 575V Voltage, 1,770 Nameplate RPM
- Totally Enclosed Fan Cooled Motor Enclosure Design
- C-Face Motor Mounting Type
Top product applications:
- Pump applications, such as water treatment or industrial processes
- Fans and blowers for industrial ventilation or air circulation systems
- Conveyors and material handling systems for heavy-duty manufacturing or warehousing operations
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,770, Frame 182TC, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 3.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, 1,701-1,800, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.13
- Package Width: 16.13
- Package Height: 24.00
- Package Weight: 60.00
Product info last updated on March 22, 2026 3:11pm UTC
Category: Motors
