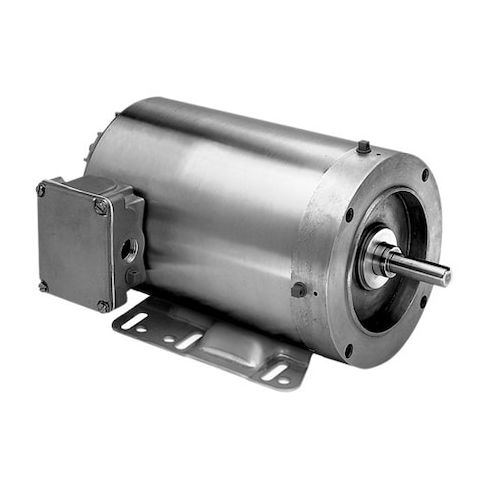

Three-Phase Washdown Motor, 1 hp HP, 145TC Frame, 208-230/460V AC Voltage, 1, 725 RPM Nameplate RPM MPN:WDP1S2AC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7730454
Three-Phase Washdown Motor, 1 hp HP, 145TC Frame, 208-230/460V AC Voltage, 1, 725 RPM Nameplate RPM
This 1 hp, three-phase washdown motor is designed for use in harsh environments, such as food processing and pharmaceutical manufacturing. Its totally enclosed, non-ventilated design protects against water and dust, while its 1.15 service factor ensures reliable operation. With a nameplate RPM of 1,725 and a 60 Hz frequency, this motor is suitable for a variety of applications, including conveyor systems, pumps, and mixers. Its compact 145TC frame makes it easy to install in tight spaces, and its continuous duty cycle ensures uninterrupted operation. Ideal for use in areas with high water exposure, this motor provides reliable performance and long lifespan.
Top product features:
- Three-Phase Design
- Totally Enclosed Non-Ventilated Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing Equipment
- Pulp and Paper Mills
- Chemical Processing Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.5-3.4/1.7 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 44.00
Product info last updated on March 5, 2026 5:22pm UTC
Category: Motors
