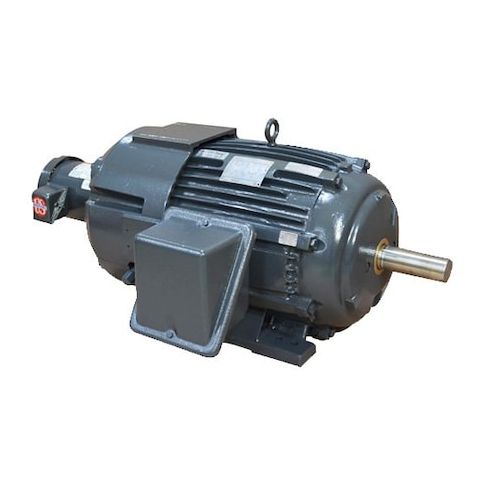

3-Phase Vector Motor, 200 HP, 447 Frame, 460V AC Voltage, 1, 790 Nameplate RPM MPN:B200T2C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7728409
3-Phase Vector Motor, 200 HP, 447 Frame, 460V AC Voltage, 1, 790 Nameplate RPM
The 200 HP 3-Phase Vector Motor from US Motors is a high-performance solution for demanding applications. Designed for continuous operation, this motor offers a speed range of 5,000:1 and a maximum speed of 1,790 RPM. With its totally enclosed blower-cooled design and rigid base mounting, it provides reliable and efficient operation in a variety of settings, including manufacturing, pumping, and material handling. Its high torque output and ability to operate at 60 Hz make it an ideal choice for applications requiring precise control and high power. Ideal for industries such as food processing, chemical processing, and oil and gas.
Top product features:
- Three-phase operation for high efficiency and reliability
- Totally enclosed blower-cooled design for reduced noise and improved cooling
- Rigid base mounting for secure and stable operation
Top product applications:
- Pumps and compressors
- Chemical processing and power generation
- Industrial conveyor systems and material handling
Vector Motor, Three Phase, Motor Design Three-Phase, 200 HP, Nameplate RPM 1,790, No. of Speeds 1, Voltage 460V AC, Full Load Amps 240.0 A, 447 Frame, Torque 353 ft-lb, Max. Speed 1,790 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Blower-Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 19.50
- Package Weight: 2230.00
Product info last updated on January 30, 2026 12:00pm UTC
Category: Motors
