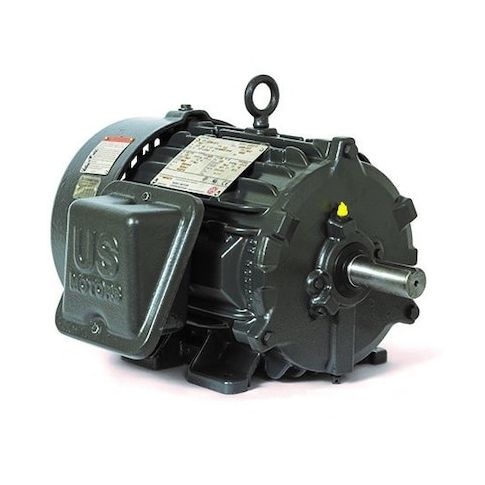

Three-Phase Motor, 15 HP, 284T Frame, 575V Voltage, 1, 180 Nameplate RPM 27 11/16 in Overall Length MPN:CD15P3G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7728214
Three-Phase Motor, 15 HP, 284T Frame, 575V Voltage, 1, 180 Nameplate RPM 27 11/16 in Overall Length
This 15 HP three-phase motor is designed for heavy-duty applications, featuring a 284T frame and 575V voltage rating. The totally enclosed fan cooled motor enclosure design ensures reliable operation in demanding environments. With a nameplate RPM of 1,180 and a service factor of 1.15, this motor can handle high loads and temperatures up to 40 degrees C. Suitable for use in industrial settings, such as manufacturing facilities and power plants, this motor provides efficient and reliable power for machinery and equipment. Its high efficiency and CSA certification make it a reliable choice for a wide range of applications.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan cooled motor enclosure for reliable heat dissipation
- CW/CCW motor shaft rotation for flexibility in application integration
Top product applications:
- Pumps and compressors in the oil and gas industry
- Industrial laundry equipment such as washers and dryers
- Industrial HVAC systems
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 1,180, Frame 284T, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 14.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1,101-1,200, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 340.00
Product info last updated on March 27, 2026 7:52am UTC
Category: Motors
