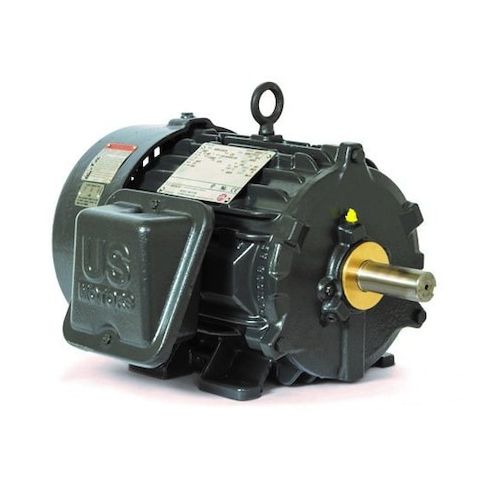

Three-Phase Motor, 20 HP, 286T Frame, 460V Voltage, 1, 180 Nameplate RPM 27 11/16 in Overall Length MPN:8D20P3C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7725478
Three-Phase Motor, 20 HP, 286T Frame, 460V Voltage, 1, 180 Nameplate RPM 27 11/16 in Overall Length
This high-performance 20 HP three-phase motor is designed for demanding applications that require reliable and efficient power. With a nameplate RPM of 1,180 and a thermal protection of none, it's ideal for use in industries such as manufacturing, oil and gas, and food processing. Its totally enclosed fan cooled motor enclosure design ensures efficient cooling and reduces maintenance needs. The motor's 91.7% nominal efficiency and 1.15 service factor make it a cost-effective solution for applications that require high power output. Suitable for use in a variety of applications, including machinery, pumps, and conveyor systems.
Top product features:
- Three-Phase operation for high power applications
- Totally Enclosed Fan Cooled Motor Enclosure for reliable operation in harsh environments
- CW/CCW Motor Shaft Rotation for flexibility in installation and integration
Top product applications:
- Industrial Pumping Systems
- Heavy-Duty Manufacturing Equipment
- Large Commercial HVAC Systems
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,180, Frame 286T, Voltage 460V, 60 Hz Hz, Three Phase, Full Load Amps 24.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1200, CE, CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 370.00
Product info last updated on February 3, 2026 9:43am UTC
Category: Motors
