3-Phase Vector Motor, 25 HP, 284 Frame, 230/460V AC Voltage, 1, 785 Nameplate RPM MPN:B25T2B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7724303

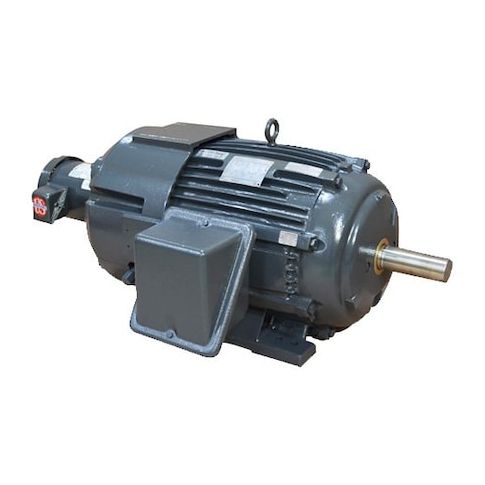

3-Phase Vector Motor, 25 HP, 284 Frame, 230/460V AC Voltage, 1, 785 Nameplate RPM
This 25 HP 3-Phase Vector Motor from US Motors is designed for demanding applications that require high efficiency and reliability. Its unique vector motor design provides a wide speed range of 5,000:1, making it suitable for various applications such as pumps, fans, and conveyor systems. With a nameplate RPM of 1,785 and a maximum speed of 1,785 RPM, this motor offers precise control and consistent performance. Its totally enclosed non-ventilated design and rigid base mounting type ensure long-lasting operation in harsh environments. Ideal for use in industrial settings, this motor is a reliable choice for applications that require continuous operation.
Top product features:
- Three-phase design allows for efficient power distribution and reduced energy losses.
- Totally enclosed non-ventilated enclosure protects the motor from environmental contaminants and provides a safe operating environment.
- Multiple speed capabilities are achieved through a single motor design with a speed range of 5,000:1.
Top product applications:
- Pumps and compressors
- Conveyors and material handling systems
- Fans and blowers
Vector Motor, Three Phase, Motor Design Three-Phase, 25 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 62.0/31.0 A, 284 Frame, Torque 369 ft-lb, Max. Speed 1,785 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 19.50
- Package Weight: 550.00
Product info last updated on March 9, 2026 4:57am UTC
Category: Motors
