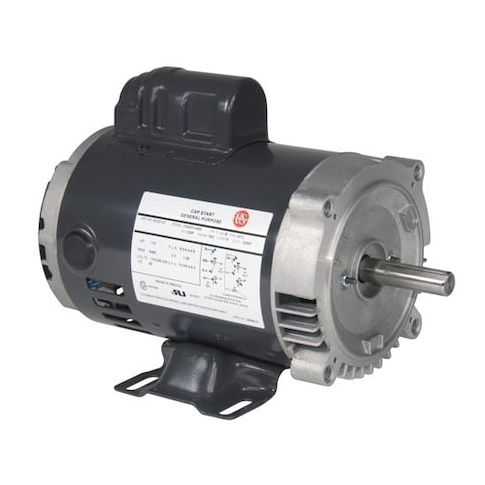

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56C Frame MPN:D12CP2PC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7642678
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56C Frame
This 1/2 hp capacitor-start general purpose motor from US Motors is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 1,725 and a voltage rating of 115/230V AC, it's suitable for use in various settings. The motor's open drip-proof enclosure and CW/CCW shaft rotation make it easy to integrate into existing systems. Its continuous duty cycle and 1.25 service factor ensure reliable operation, while its compact size and lightweight design make it easy to install and maintain. Suitable for applications such as pumps, fans, and conveyor systems, this motor provides efficient and reliable performance.
Top product features:
- Capacitor-start design provides a reliable starting mechanism
- Single-phase operation allows for efficient energy use
- Open drip-proof enclosure design protects against dust and moisture
Top product applications:
- Pump applications for residential and light commercial use
- Fans and blowers for residential and commercial HVAC systems
- Conveyor systems and machinery in industrial settings
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.0/2.6 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 23.00
