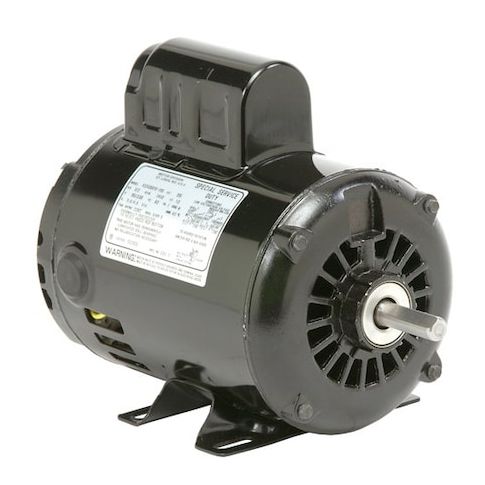

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame MPN:D2CPA2PH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7642355
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame
This 2 hp capacitor-start/run general purpose motor from US Motors is designed for a wide range of applications, including industrial equipment, pumps, and fans. Its single-phase design and 1,725 RPM nameplate speed make it suitable for use in various environments, including those with limited space. The motor's open drip-proof enclosure and rigid base mounting type provide added protection and stability. With a service factor of 1.15 and continuous duty cycle, this motor can handle demanding applications. Its compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing productivity.
Top product features:
- Capacitor-start/run design allows for efficient starting and running of the motor
- Single-phase design enables operation on a single AC voltage source
- Open drip-proof enclosure design provides protection against dust and water exposure
Top product applications:
- Pumps
- Air compressors
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.0/8.5 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.40
- Package Height: 10.80
- Package Weight: 47.76
Product info last updated on March 4, 2026 3:00pm UTC
Category: Motors
