Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56H Frame MPN:D32CP2PH9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7599332

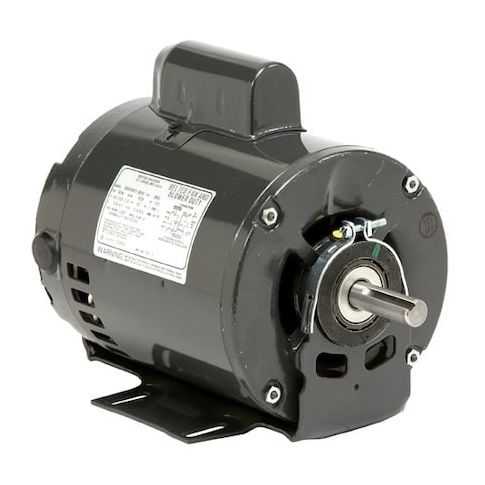

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56H Frame
This 1.5 hp capacitor-start general purpose motor from US Motors is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 1,725, it provides efficient and reliable performance in environments with a maximum ambient temperature of 40 degrees C. Suitable for continuous duty cycles, this motor features a 56H frame and is available in 115/230V AC voltage configurations. Its compact design and open drip-proof enclosure make it easy to integrate into various systems, making it an ideal choice for applications such as HVAC, conveyor systems, and material handling equipment.
Top product features:
- Capacitor-start/run design provides efficient starting and running capabilities
- Motor design allows for single-phase operation
- Open drip-proof enclosure protects against dust and water ingestion
Top product applications:
- Pumps and water treatment equipment
- Fans and blowers
- Conveyors and material handling systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.4/6.7 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 11.00
- Package Height: 10.50
- Package Weight: 44.20
Product info last updated on January 15, 2026 9:45pm UTC
Category: Motors
