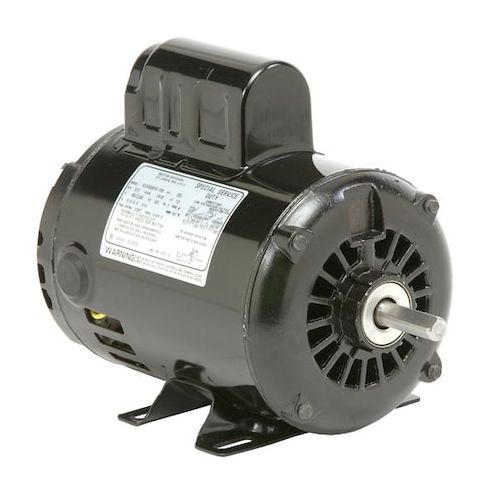

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame, 1, 725 Nameplate RPM MPN:D1CPA2PH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7599025
Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame, 1, 725 Nameplate RPM
This 1 hp capacitor-start general purpose motor is designed for use in a variety of applications, including residential and commercial settings. Its single-phase design and 115/230V AC voltage make it suitable for use in a range of systems. The motor's 1,725 RPM speed and 8.8/4.4 A full load amps provide efficient operation, while its 56H frame and open drip-proof enclosure ensure durability and protection. Ideal for use in fans, pumps, and other equipment, this motor offers reliable performance and long-lasting service, making it a valuable addition to any installation.
Top product features:
- Capacitor-start technology allows for efficient starting and running of the motor
- Single-phase design enables operation on 115/230V AC voltage
- Open drip-proof enclosure design provides protection against dust and water
Top product applications:
- Pump applications
- Conveyor systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.20
- Package Width: 8.60
- Package Height: 10.90
- Package Weight: 17.35
Product info last updated on March 13, 2026 2:55am UTC
Category: Motors
