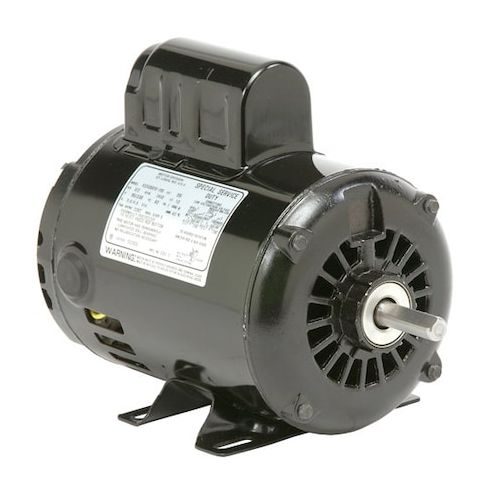

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56H Frame MPN:D34CP1PH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7598456
Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56H Frame
This 3/4 hp general purpose motor from US Motors is a reliable and efficient solution for various applications. Suitable for use in single-phase systems, it features a capacitor-start/run design for smooth operation. With a nameplate RPM of 3,450, it's ideal for applications requiring moderate speed. The motor's open drip-proof enclosure provides protection against dust and water, making it suitable for use in harsh environments. Its continuous duty cycle and high service factor ensure long motor life. Use it in HVAC systems, pumps, and other applications where a reliable and efficient motor is required.
Top product features:
- Capacitor-start/run design provides reliable starting and continuous operation
- Single-phase motor design allows for efficient operation in standard household electrical systems
- Open drip-proof enclosure design protects the motor from dust and water splashes, ensuring reliable operation in harsh environments
Top product applications:
- Industrial laundry equipment
- Commercial refrigeration units
- Food processing machinery
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.0/3.6 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 32.00
Product info last updated on March 8, 2026 11:27am UTC
Category: Motors
