Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56HC Frame MPN:D32CP2PHC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7597993

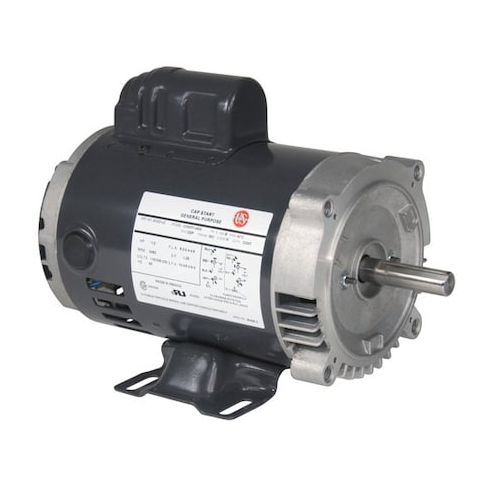

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56HC Frame
The US Motors Capacitor-Start General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in a range of environments, this 1 1/2 hp motor operates at 115/230V AC voltage and 1,725 RPM, making it ideal for demanding tasks. Its open drip-proof design ensures protection from dust and water, while its continuous duty cycle and 1.15 service factor guarantee reliable performance. Perfect for use in manufacturing, material handling, and other industrial settings, this motor delivers reliable operation and long lifespan, making it a valuable addition to any facility.
Top product features:
- Capacitor-start design allows for efficient starting and operation of the motor
- Operates at 1,725 RPM to meet specific application requirements
- Open drip-proof enclosure design provides protection from dust and water
Top product applications:
- Industrial Conveyors
- Pumps and Pumping Systems
- Fans and Blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.4/6.7 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 24.00
Product info last updated on February 6, 2026 6:42pm UTC
Category: Motors
