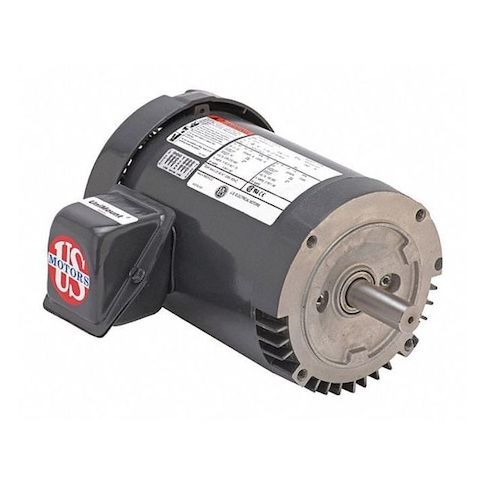

Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage, 1755 Nameplate RPM MPN:U1P2DCR
Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage, 1755 Nameplate RPM
This 1 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure provides a safe and reliable operation in various environments. With a nameplate RPM of 1755 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks. Its 85.5% nominal efficiency and continuous duty rating make it an ideal choice for applications such as conveyor systems, pumps, and fans. The motor's durable steel frame and ball bearings ensure a long lifespan, making it a reliable solution for various industries.
Top product features:
- Three-Phase Operation
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1755, Frame 143TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.1/1.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CSA (258501), UL (E47479)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.60
- Package Height: 19.60
- Package Weight: 40.05
Product info last updated on February 26, 2026 6:31pm UTC
Category: Motors
