3-Phase Hazardous Location Motor, 25 HP, 284 Frame, 230/460V AC Voltage, 3, 560 Nameplate RPM MPN:YC25P1BS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5973844

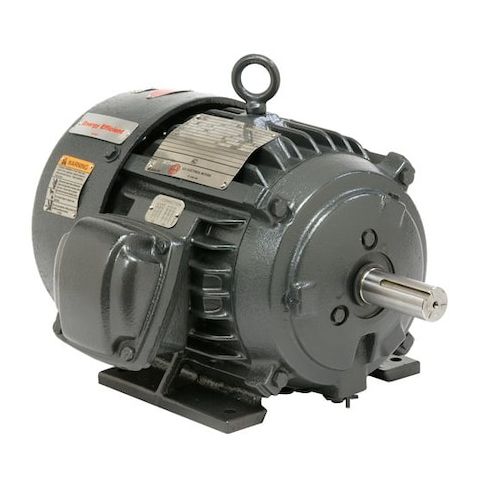

3-Phase Hazardous Location Motor, 25 HP, 284 Frame, 230/460V AC Voltage, 3, 560 Nameplate RPM
This 25 HP three-phase hazardous location motor is designed for use in hazardous environments, meeting Class I, Class II, and T2B temperature code requirements. Its totally enclosed fan-cooled design provides reliable operation in extreme temperatures, while its 60 Hz operation ensures efficient energy use. Suitable for use in oil and gas refineries, chemical plants, and other industrial settings, this motor offers continuous duty cycle operation and can be mounted on a rigid base. Its compact 284 frame size makes it ideal for space-constrained applications, providing a reliable and efficient solution for hazardous location motor needs.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Hazardous Location Class I, Class II, Temp. Code T2B designation indicates the motor is designed for use in environments with specific explosive or ignition risks.
- Three-Phase design allows for efficient power distribution and reduced energy losses.
Top product applications:
- Oil and Gas Industry
- Chemical Processing Plants
- Petrochemical Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 3,560 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 57.0/28.7 A, 284 Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 390.00
Product info last updated on April 10, 2026 12:03am UTC
Category: Motors
