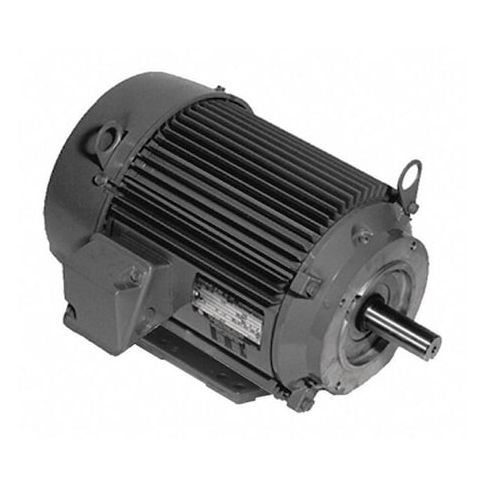

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 3, 540 Nameplate RPM MPN:U3P1DCR
Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 3, 540 Nameplate RPM
This 3 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan-cooled design provides reliable operation in various environments, while its high efficiency of 86.5 percent helps reduce energy costs. The motor's durable aluminum frame and ball bearings ensure long-lasting performance, making it suitable for continuous duty applications. With a 1.25 service factor and 40°C maximum ambient temperature, this motor is ideal for use in factories, warehouses, and other industrial settings where high reliability and efficiency are critical.
Top product features:
- Three-phase operation allows for efficient power transmission and reduced energy consumption.
- Totally enclosed fan cooled motor design provides a safe and reliable operating environment.
- Ball bearings enable smooth and quiet motor operation, reducing wear and tear on the motor.
Top product applications:
- Powering a small to medium-sized industrial laundry facility
- Used in a manufacturing plant for machinery operation
- As a replacement motor for a 3 HP, 3,540 RPM application in a commercial or industrial setting
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3,540, Frame 182TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.4-7.8/3.9 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 16.50
- Package Height: 24.50
- Package Weight: 65.00
Product info last updated on February 14, 2026 8:26am UTC
Category: Motors
