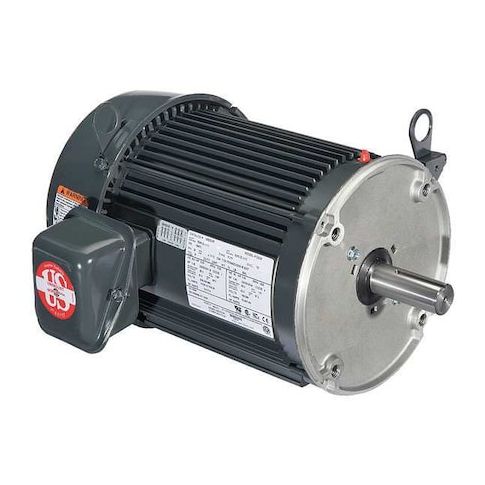

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 208-230/460V AC Voltage, 3520 Nameplate RPM MPN:U10P1DCR
Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 208-230/460V AC Voltage, 3520 Nameplate RPM
This 10 HP three-phase general purpose motor is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 3520 and a service factor of 1.25, it can handle demanding tasks in industrial settings. The motor's totally enclosed fan cooled design and ball bearings ensure smooth operation and extended lifespan. Ideal for use in manufacturing, processing, and material handling facilities, this motor offers continuous duty operation and a maximum ambient temperature of 40 degrees C. Its compact 215TC frame and CW/CCW motor shaft rotation provide flexibility in installation.
Top product features:
- Three-Phase Operation
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Pumping Systems
- Conveyor Systems
- Oil and Gas Industry Applications
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3520, Frame 215TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 26.4-23.5/11.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 14.50
- Package Height: 28.00
- Package Weight: 120.00
Product info last updated on February 16, 2026 4:00pm UTC
Category: Motors
