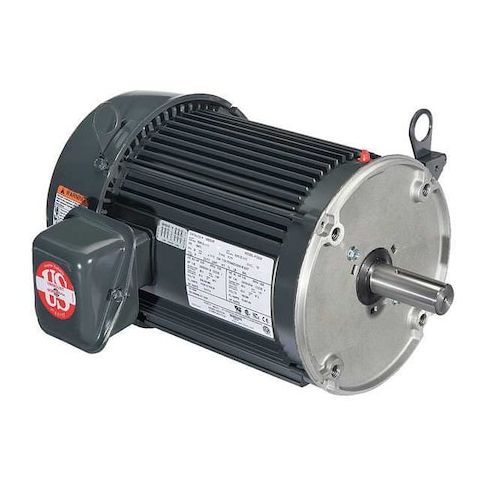

Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 208-230/460V AC Voltage, 1170 Nameplate RPM MPN:U5P3DCR
Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 208-230/460V AC Voltage, 1170 Nameplate RPM
This 5 HP three-phase general purpose motor from US Motors is designed for continuous duty applications, offering high efficiency and reliability. With a totally enclosed fan cooled motor enclosure, it operates in a wide range of temperatures and environments. Suitable for use in industrial settings, such as manufacturing, processing, and material handling, this motor provides a cost-effective solution for applications requiring high torque and power. Its compact 215TC frame and CW/CCW motor shaft rotation make it easy to integrate into existing systems, while its 89.5% nominal efficiency helps reduce energy costs and minimize environmental impact.
Top product features:
- Three-phase operation for high power applications
- Totally enclosed fan cooled motor enclosure design for efficient heat dissipation
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps and water treatment systems
- Manufacturing and production machinery
- Industrial conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1170, Frame 215TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 15.0-14.0/7.0 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 21.00
- Package Height: 36.00
- Package Weight: 120.00
Product info last updated on February 12, 2026 8:34pm UTC
Category: Motors
