Direct Drive Blower Motor, 48Y MPN:6643
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5657252

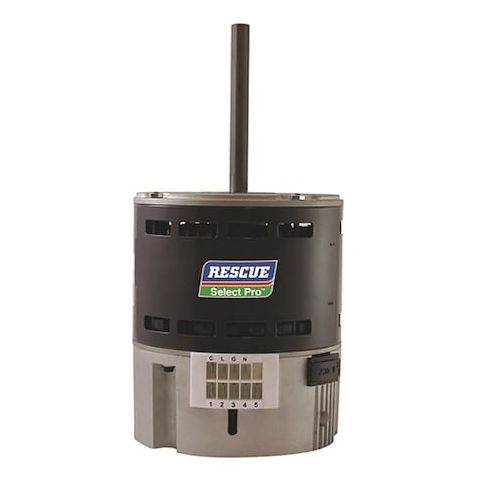

Direct Drive Blower Motor, 48Y
This 3/4 hp direct drive blower motor from US Motors is a reliable and efficient solution for various applications. Suitable for single-phase systems, it operates at 115/208-230V AC and features a nameplate RPM of 1,075. The motor's ECM design provides high performance and efficiency, while its thermal protection ensures safe operation. Ideal for use in HVAC, industrial, and commercial settings, this motor is also resistant to extreme temperatures and can operate continuously. Its compact design and easy mounting make it a convenient choice for a wide range of applications, including air handling units, fans, and blowers.
Top product features:
- Direct Drive design for efficient airflow and reduced vibration
- Single-phase operation for simplicity and ease of installation
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- HVAC systems for residential and commercial buildings
- Industrial ventilation systems for factories and warehouses
- Air purification systems for hospitals and laboratories
ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 9.3/5.8-5.4 A, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60/50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position Horizontal, Number of Shafts 1
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 7.00
- Package Height: 6.90
- Package Weight: 15.10
Product info last updated on February 5, 2026 4:31am UTC
Category: Motors
