Three-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 208-230/460V AC Voltage MPN:U32P3DCR

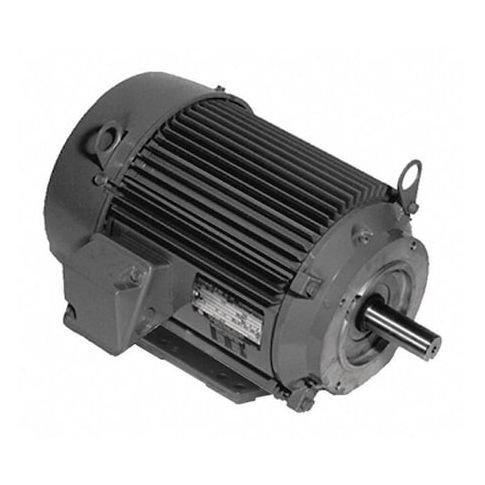

Three-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 208-230/460V AC Voltage
This 1.5 HP three-phase general purpose motor is designed for high-performance applications that require continuous duty operation. With a nameplate RPM of 1175 and a voltage range of 208-230/460V AC, this motor is suitable for use in a variety of settings, including industrial manufacturing, commercial facilities, and heavy-duty equipment. The totally enclosed fan-cooled motor enclosure design provides reliable operation in harsh environments, while the ball bearings and aluminum frame ensure durability and long motor life. Ideal for applications that require high efficiency and continuous operation, this motor is a reliable choice for demanding industrial and commercial use.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan-cooled motor enclosure design provides reliable operation in a variety of environments.
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Industrial Pumps
- Factory Automation Systems
- Conveyor Belts
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1175, Frame 182TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.8-4.7/2.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.38
- Package Width: 14.00
- Package Height: 27.50
- Package Weight: 60.00
Product info last updated on April 3, 2026 7:43am UTC
Category: Motors
