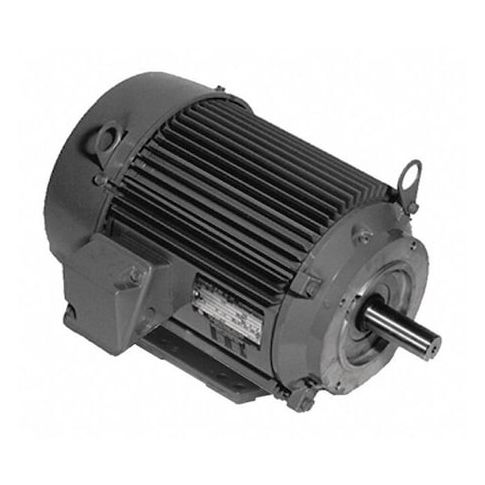

Three-Phase General Purpose Motor, 5 HP, 184TCH Frame, 208-230/460V AC Voltage, 3520 Nameplate RPM MPN:U5P1DKR
Three-Phase General Purpose Motor, 5 HP, 184TCH Frame, 208-230/460V AC Voltage, 3520 Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3520, Frame 184TCH, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.4-12.2/6.1 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 16.00
- Package Height: 24.00
- Package Weight: 75.00
Product info last updated on April 10, 2026 8:16am UTC
Category: Motors
