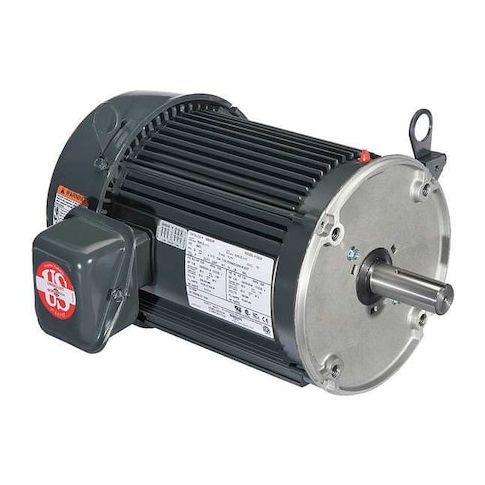

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 208-230/460V AC Voltage, 1760 Nameplate RPM MPN:U10P2DCR
Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 208-230/460V AC Voltage, 1760 Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1760, Frame 215TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 26.5-23.9/12.0 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 21.00
- Package Height: 36.00
- Package Weight: 133.00
Product info last updated on February 7, 2026 5:12pm UTC
Category: Motors
