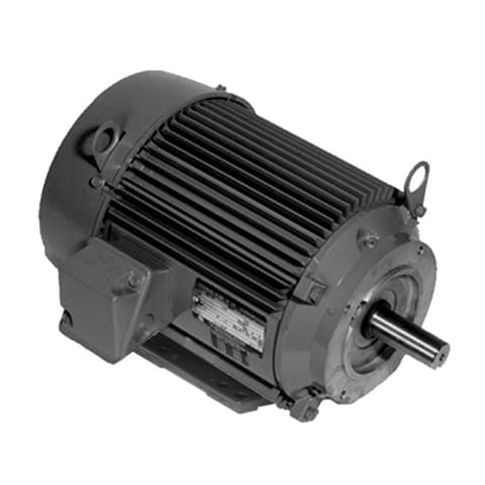

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 3520 Nameplate RPM MPN:U5P1DCR
Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 3520 Nameplate RPM
This 5 HP three-phase general purpose motor from US Motors is designed for a wide range of applications, including industrial and commercial settings. With a 184TC frame and totally enclosed fan cooled motor enclosure, it provides efficient and reliable operation in harsh environments. The motor's high nameplate RPM of 3520 and continuous duty rating make it suitable for demanding applications. Its high efficiency of 88.5% and compact design also make it an excellent choice for space-constrained areas. Suitable for use in manufacturing, material handling, and other industrial processes, this motor offers a reliable and cost-effective solution for a variety of applications.
Top product features:
- Three-phase operation provides balanced power delivery
- Totally enclosed fan cooled design allows for efficient heat dissipation
- Ball bearings provide smooth and quiet motor operation
Top product applications:
- Manufacturing and production lines
- Pumping stations and water treatment plants
- Industrial automation and robotics
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3520, Frame 184TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.4-12.2/6.1 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 16.30
- Package Height: 24.10
- Package Weight: 69.00
Product info last updated on March 25, 2026 5:57pm UTC
Category: Motors
